Smoke on the water -

Deep Purple sang in 1972.



In a festival,

guitar player Ritchie Blackmore

had gasolene splattered

all over the stage,

then had it set on fire.

When he was held accountable for this,

all he said was this:



People want entertainment.

I give it to them.



We think this is a great idea.

Today, however,

you do not need to set the stage on fire if you want smoke

Pictures

Accessories

 Parameters

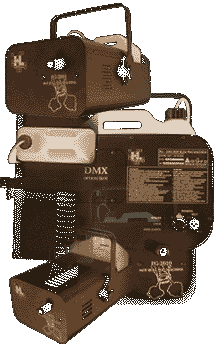

FG–2005

High performance and simple operation.



...these are the key features of model FG 2005. Recommended for those craving for high blow performance at an affordable price. This model has been available for a long time, and it's highly popular both in Hungary and in foreign markets. The main reason for its popularity is that the cool-looking fog trail is generated by an well-designed, reliable system. Behind the elegant form factor design is a high performance fogger— it has a 5l tank that rarely needs to be refilled even during permanent operation.

FG 2005 Hot Bull's fog trail is up to 20m (66ft) in length. Nevertheless, this machine can also be used in small halls. Its fog emission can be regulated by operating the equipment for short periods, resulting in smaller "fog impulses".

The housing has rubber feet for safe floor operation. Suspension is based on a stabilized fast-turn mounting bracket (option). Its temperature remains lukewarm while in operation. Since the fog blow pipe has a threaded rim, a diffuser can also be connected.

The control panel of the FG 2005 has a fog start button and a control LED. This Hot Bull model is suited for continous operation, since it has an electronic temperature control. The control LED indicates when the machine is ready to fog. On the back side, a blue power LED indicates that the equipment is receiving power.The FG 2005 has all standard protection features built in. A thermal fuse is also included to protect the furnace from overheating.

As optional accessories, radio control is also available for the Hot Bull. The radio controller can be connected subsequently, with a few easy steps.



FG–2010

Vision for the Future



The model number could just as well indicate the year—this fogger, named Hot Bull, is designed for stages of the future. Its appearance, features and parameters make this fogger a reliable companion of even the most demanding users. The elaborate, yet massive housing contains a 5l fluid tank. The tank is not integrated, thus it is easy to remove for refilling. The suction tube is calibrated. After removing the filter, foggers can be connected to a central liquid supply system, which provides a simple remote refilling solution for FG 2010's mounted on higher structures.



Suspension is based on a stabilized fast-turn mounting bracket, but theater and concert environments have also been considered: the housing is equipped with rubber feet and its temperature remains lukewarm even during permanent use. Since the fog blow pipe has a threaded rim, a diffuser can also be connected.



Nomen est omen — the Hot Bull is always ready to smoke, since its electronic control ensures constant furnace temperature. This enables users to adapt to varying circumstances when using the FG 2010. The Hot Bull can be "suppled" with an intelligent, yet easy to use cable-controller. Using the potmeter (see figure), the fog trail length (fog intensity) can be set from 1m (3.3 ft) to 20m (66 ft).  Fogging can be started with the push button that has a dual function: depending on the position of the potmeter, it operates as an on/off switch or a push button. Thus the Hot Bull can also be used in continuous ("fazer") mode. The red LED on the FG 2010's control panel indicates ready status, and the green LED indicates fogging on status. Backside LED's indicate whether power is available ("Power"), the fluid tank is empty ("Tank Empty") and low furnace temperature ("Cool").







Remote

As optional accessories, radio control and DMX functionality are also available for the Hot Bull. The FG 2010 is unique in that the radio controller or the DMX extension can also be connected subsequently, with a few easy steps. The fogger has a multilevel protection system: in addition to the usual systems, it has a dual "furnace overheating prevention" system. A separate system is responsible for the safe operation of thermal sensors. In addition, a thermal fuse and a connected circuit provide further protection for the furnace. The Hot Bull is also protected against pump overheating. When the fluid tank goes empty, the FG 2010 automatically stops the pump ("tank empty" feature).

As you may have realized by now, the FG 2010 is a universal tool suitable for a wide range of theatrical and vision technology purposes. You do not need to browse through a series of fog machines to select the right one for the job: when you buy the Hot Bull 2010, you obtain "multiple" tools for the price of one. Hot Bull 2010 — Vision for the Future.
