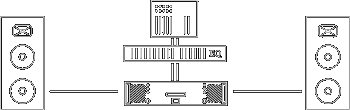

Generic sound systems

for schools and community centers

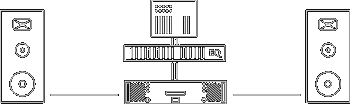

Generic sound systems

for smaller movie theaters and bands

This configuration is recommended for smaller events requiring high volumes to be supplied by 2 high power, 4-Ohm compact sound boxes either in fixed or mobile installation

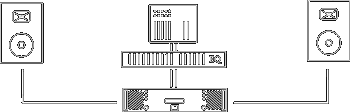

Generic sound systems

for schools and bands

This configuration is recommended for smaller events where 2 low or medium power, 8-Ohm compact sound boxes are available either in fixed or mobile installation

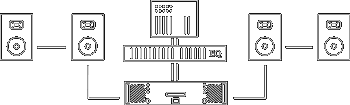

Generic sound systems

for community centers, pubs, casinos

This configuration is recommended for smaller events in pubs, schools, casinos where by 4 low or medium power, 8-Ohm compact sound boxes connected in parallel are required to provide good sound using either fixed or mobile installation

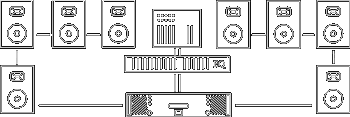

Generic sound systems

for casinos, restaurants, pubs

This configuration is recommended wherever the audience space and audio setup requires the use of several low power compact sound boxes. Recommended in particular for background boxes in fixed installation (pubs, casinos, restaurants, higher power systems). The 2-Ohm load capacity of these amplifiers can well be utilized by connecting 4-4 sound boxes in parallel

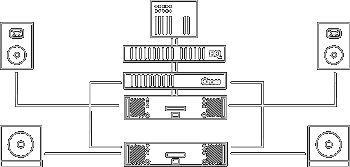

Generic sound systems

for smaller discotheques and bands

This configuration is recommended for smaller events, bands, discotheques where a multipath low or medium power 8-Ohm sound box setup needs to be driven using either fixed or mobile installation. We offer several combinations of MPA amplifiers to drive medium power bass sections and low power medium audio range compact sound boxes

Amplifier: Low: MPA 1208 Mid-high: MPA 608

Generic sound systems

for medium size discotheques and theaters

This configuration is recommended for medium size discotheques, theaters, cinemas where a multipath medium power 4-Ohm and 8-Ohm sound box setup needs to be driven using either fixed or mobile installation. We offer several combinations of MPA amplifiers to drive medium power bass sections and medium power medium audio range compact sound boxes

Amplifier: Low: MPA 1202 bridged 2 pcs. Mid-high: MPA 808 1 pc.

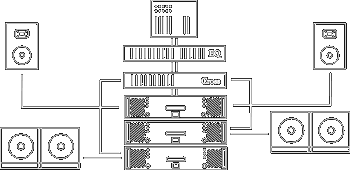

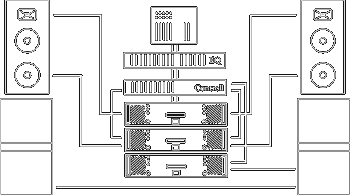

Generic sound systems

for discotheques and theaters

This configuration is recommended for discotheques, theaters, cinemas where a multipath 4-Ohm system consisting of high power bass sections and medium power medium audio range compact sound boxes needs to be driven using either fixed or mobile installation

Amplifier: Low: MPA 1802 bridged 2 pcs. Mid-high: MPA 1204 1 pc.

Amplifier: Low: MPA 1802 bridged 1 pc. Mid: MPA 1804 1 pc. High: MPA 1208 1 pc.

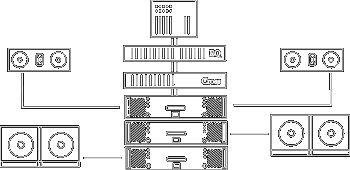

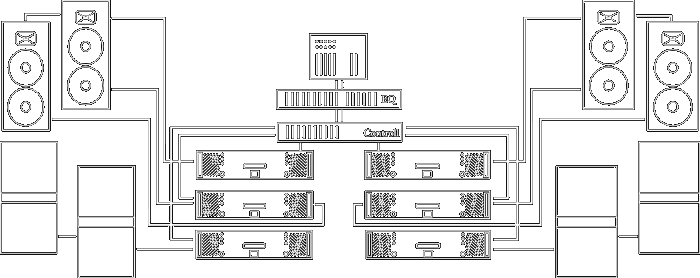

Grand sound systems for outdoor events, bands/orchestras and concerts

This configuration is our recommended outdoorsound box system consisting of high power cone bass sections as well as high power medium and high speakers for multiway systems.

Amplifier: Low: MPA 1802 bridged 2 pcs. Mid: MPA 1804 2 pcs. High: MPA 1202 bridged 2 pcs.
